Product Display

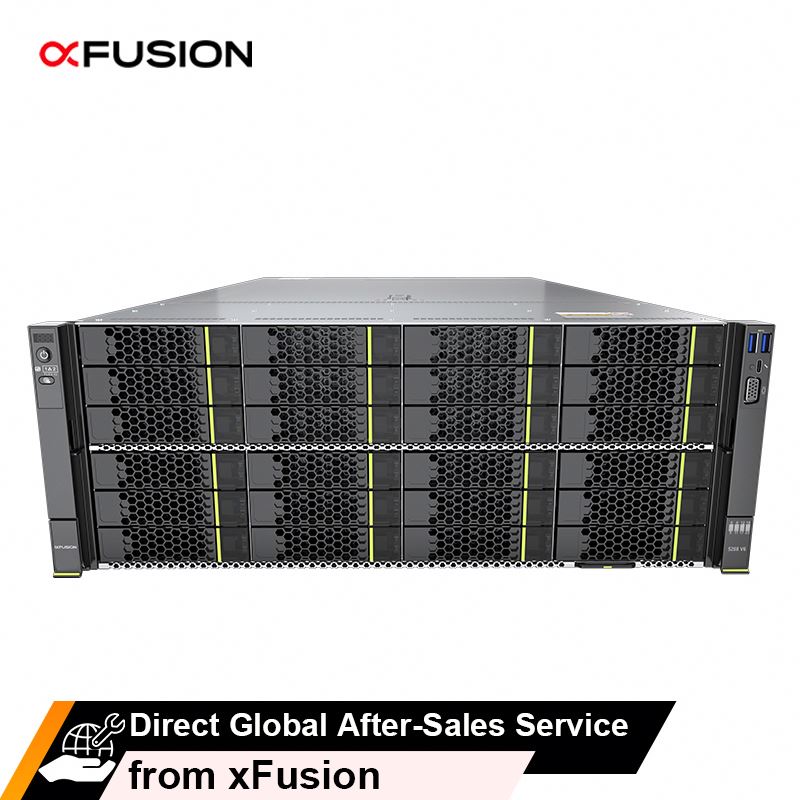

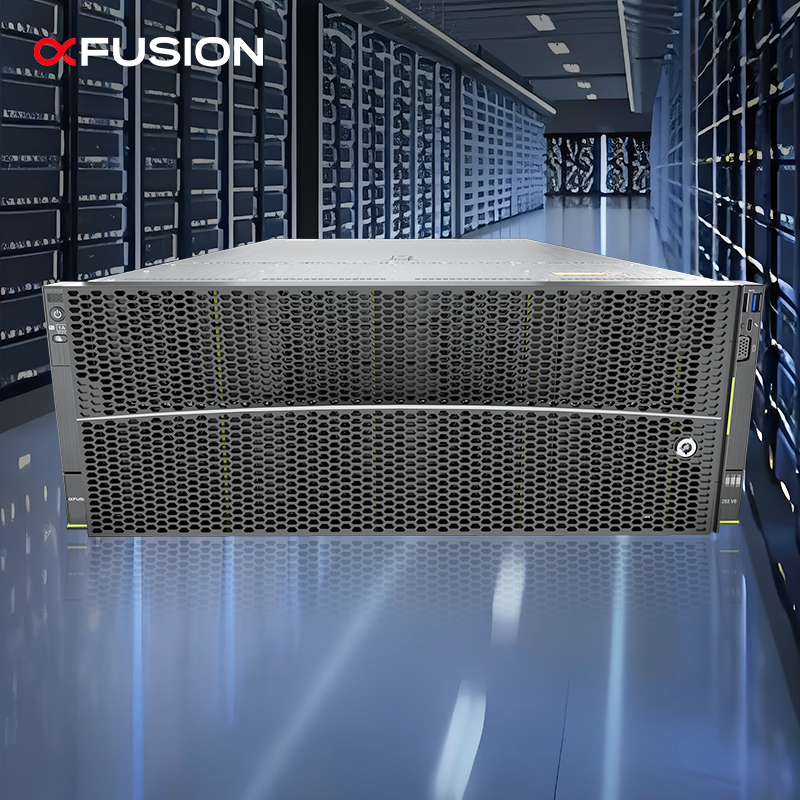

FusionServer 5288 V6 4U Rack Server
FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving. With its efficient design, FusionServer 5288 V6 ensures excellent computing performance and provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs. The 5288 V6 can be configured with two Intel Xeon scalable processors, 32 DDR4 DIMMs, and 44 3.5-inch + 4 NVMe SSDs in a 4U space. It integrates patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and can be configured with FusionDirector full-lifecycle management software, effectively reducing OPEX and improving ROI.

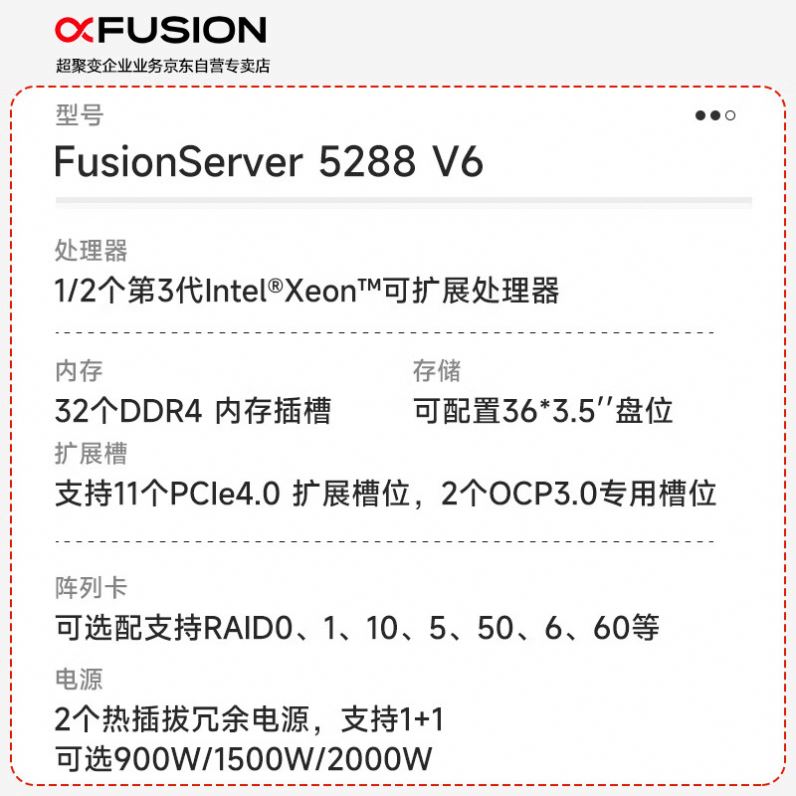

Product Parameters
| Server Model |
FusionServer 5288 V6 |
| Form Factor |
4U Rack Server |
| Processors |
1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series) , up to 270W |
| Local Storage |
Various hard disk configurations are supported. The hard disks are hot swappable:
- 36 to 44 3.5-inch SAS/SATA HDDs and 4 NVMe SSDs
- 24 x 3.5-inch SAS/SATA front hard disks
- 4 3.5-inch SAS/SATA internal hard disks
- 16 3.5-inch SAS/SATA hard disks and four 2.5-inch SAS/SATA/NVMe rear hard disks
- 12 3.5-inch SAS/SATA disks and eight 2.5-inch rear hard disks (4 x 2.5″ HDDs + 4 x 2.5″ SAS/SATA/NVMe)
Flash storage:
|

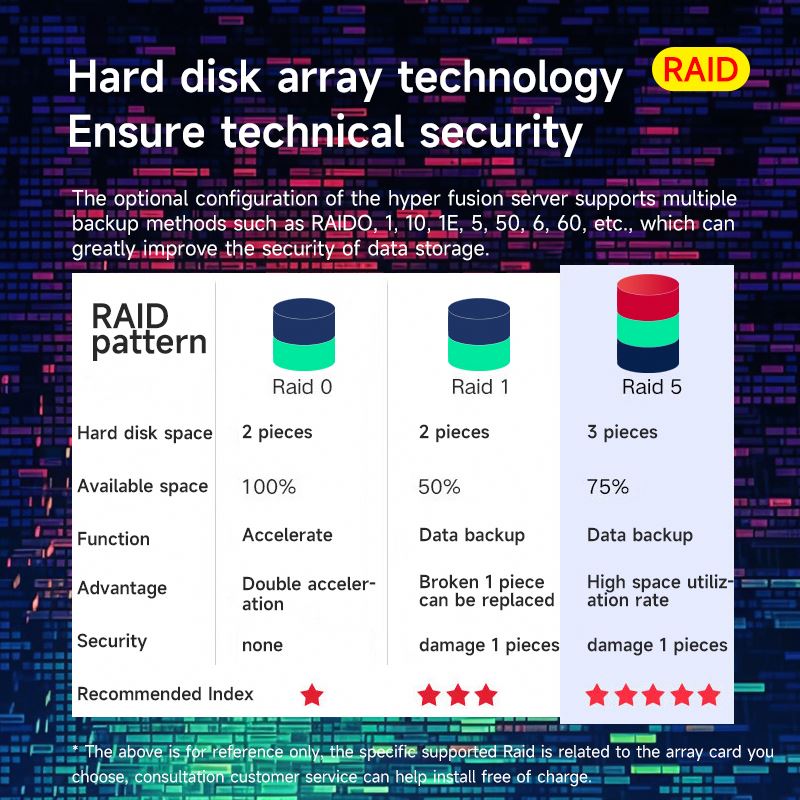

| RAID Support |
Supports RAID 0, 1, 5, 50, 6, and 60, cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web-based remote configuration, and multiple network expansion capabilities |
| Network |
OCP 3.0 NIC
The two FLEX I/O card slots support two OCP 3.0 NICs, which can be configured as required
Supports multiple OCP 3.0 NICs
Supports hot swap
|
| PCIe Expansion |
A maximum of 11 PCIe 4.0 slots, including one dedicated PCIe slot for the RAID controller card, two dedicated FLEX I/O slots for OCP3.0, and eight standard PCIe 4.0 slots |
| Chip Set |
Intel® C621A |
| Fan Modules |
Four hot-swappable fans, supporting N+1 redundancy |
| Height X Width X Depth |
Chassis dimensions: 175 mm x 447 mm x 790 mm |
| Power Supply Units |
2 redundant hot-swappable PSUs are configured in 1+1 redundancy mode. The optional specifications are as follows:
- 900W AC Platinum/Titanium power supply (Input: 100–240 V AC or 192–288 V DC)
- 1500 W AC Platinum PSU
- 1000 W (input: 100 V AC to 127 V AC)
- 1500 W (input: 200–240 V AC or 192–288 V DC)
- 2000 W AC Platinum PSU
- 1800 W (input: 200–220 V AC or 192–200 V DC)
- 2000 W (input: 220–240 V AC or 200–288 V DC)
|
Company Profile
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation. As authorized partners for major manufacturers, we provide:
- Computing servers
- Network storage
- Network switches
- CPU, RAM, HARD DRIVES, and other accessories
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1 When can I get the quotation?
We usually quote within 24 hours after receiving your inquiry. If you are in urgent need of the pricing, please specify it in your inquiry so that we can prioritize your request.
Q2 Why should I choose your server solutions?
Quality and industry reputation are our top priorities:
- Our complete system products come with a 3-year replacement warranty, supported by an established supply chain to handle post-sales technical issues.
- All memory modules utilize original brand-name chips and undergo strict verification before shipment.
- Our facilities have successfully passed strict third-party audits and platform inspections.
- We support multiple convenient payment options (T/T, credit cards, etc.) to guarantee transaction security.
Q3 What is the Minimum Order Quantity (MOQ) for custom or OEM orders?
The MOQ varies depending on the specific product configuration. Please share your detailed requirements with us, and we will do our best to accommodate your target volume. Small trial orders are also welcome.
Q4 How are your prices structured compared to local market rates?
We specialize in enterprise IT hardware with an optimized supply chain. We prioritize internal components quality to support reliable, long-term business performance. Even when external appearances seem identical, internal specifications determine overall stability and value.
Q5 How do you ensure product quality before delivery?
Every hardware component and server configuration undergoes rigorous technical diagnostic testing and stress tests prior to packaging. This guarantees that all systems arrive in optimal, field-ready condition.
Q6 What logistics services do you provide for safe transport?
We utilize professional, multi-layered protective packaging designed to withstand transit conditions. We cooperate with leading logistics providers to ensure timely, tracked, and secure delivery of your server equipment.
